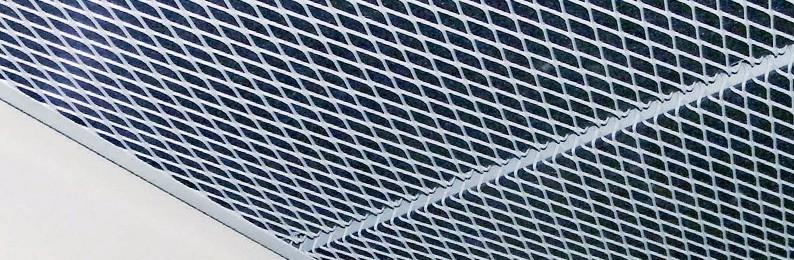

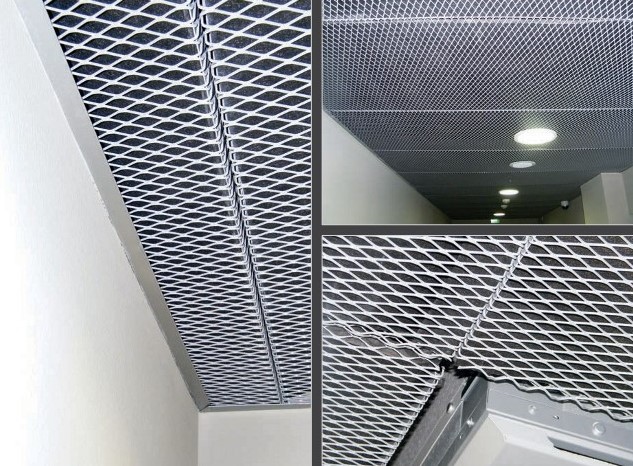

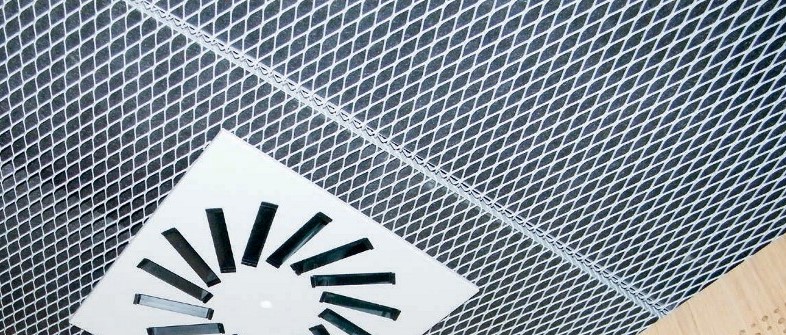

METAL CEILING
Create and innovate inspiring spaces with MARIANItech® Expanded Metal ceiling systems. Be it large or small, our solutions will give life to your ceiling surfaces. MARIANItech® provides ceilings ready to be installed with different possibilities.

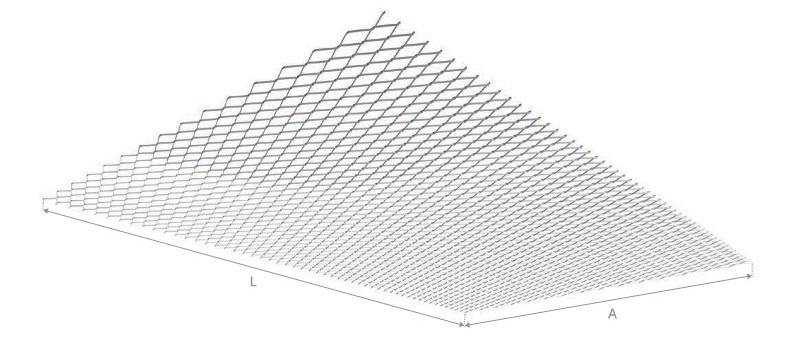

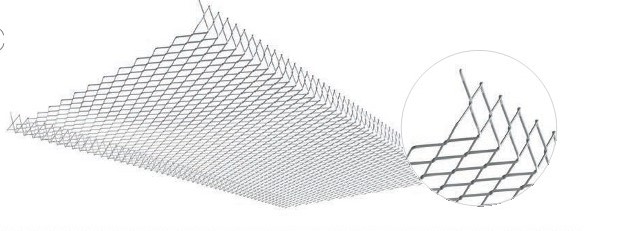

FLAT PANELS
SIZE OPTIONS:
A – from 250 up to 600 mm – L – up to 3000 mm
WEAVING EMOTIONS
The MARIANItech Technical Department gives you also the unique opportunity of creating new and special metal clothes. Moreover, thanks to the innovative 3D technical drawing techniques, it is possible to step from the drawing to the real prototype easily and in short time. MARIANItech means professional skills, innovation and creativity. The cooperation with lighting professionals allows MARIANItech to experiment and create innovative solutions for the light management.
MESH OPTIONS

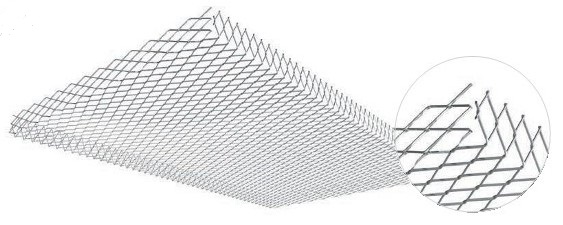

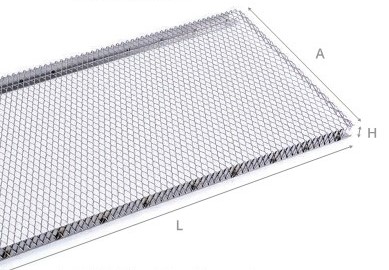

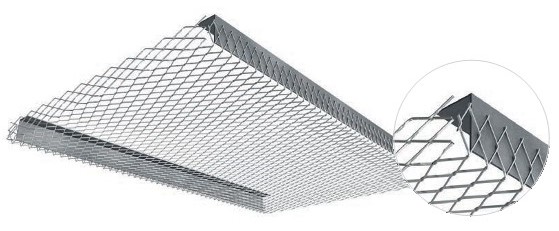

BENDED AND FRAMED PANELS
A – from 250 up to 600 mm
L – up to 3000 mm
H – 30 / 40 / 50 mm
BASIC
MODULE
EVO
EVO PLUS

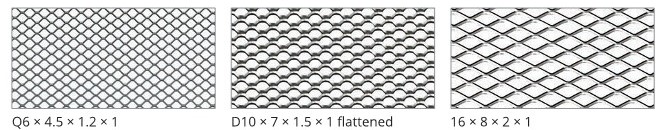

MESH TYPES
LEGEND
LWD: LONG WAY DIAGONAL
SWD: SHORT WAY DIAGONAL
SW: STRAND WIDTH
TH: THICKNESS

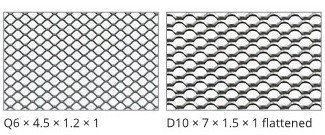

Q6 × 4.5 × 1.2 × 1
LWD
6mm
SWD
4.5mm
TH
1.2mm
MATERIAL
ALUMINUM
Mild Steel, GI Steel, St. Steel
WEIGHT
1.45 Kg/mtr2
4.2 Kg/mtr2
D10 × 7 × 1.5 × 1 flattened
LWD
10mm
SWD
7mm
TH
1.5mm
MATERIAL
ALUMINUM
Mild Steel, GI Steel, St. Steel
WEIGHT
1.15 Kg/mtr2
3.3 Kg/mtr2

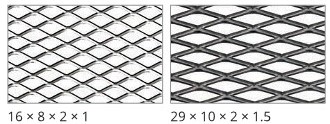

16 × 8 × 2 × 1
LWD
16mm
SWD
8mm
TH
2mm
MATERIAL
ALUMINUM
Mild Steel, GI Steel, St. Steel
WEIGHT
1 Kg/mtr2
3 Kg/mtr2

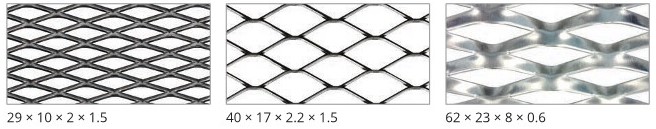

29 × 10 × 2 × 1.5
LWD
29mm
SWD
10mm
SW
2mm
TH
1.5mm
OPEN AREA
60%
MATERIAL
ALUMINUM
Mild Steel, GI Steel, St. Steel
WEIGHT
1.65 Kg/mtr2
4.75 Kg/mtr2

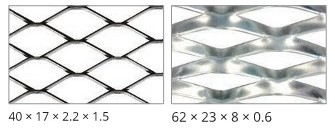

40 × 17 × 2.2 × 1.5
LWD
40mm
SWD
17mm
SW
2.2mm
TH
1.5mm
OPEN AREA
70%
MATERIAL
ALUMINUM
Mild Steel, GI Steel, St. Steel
WEIGHT
1.05 Kg/mtr2
3.05 Kg/mtr2
62 × 23 × 8 × 0.6
LWD
62mm
SWD
23mm
SW
8mm
TH
0.6mm
OPEN AREA
35%
MATERIAL
ALUMINUM
Mild Steel, GI Steel, St. Steel
WEIGHT
1.15 Kg/mtr2
3.30 Kg/mtr2
Tile and BAC panels can also be made with all the other MARIANItech® expanded metal meshes.
