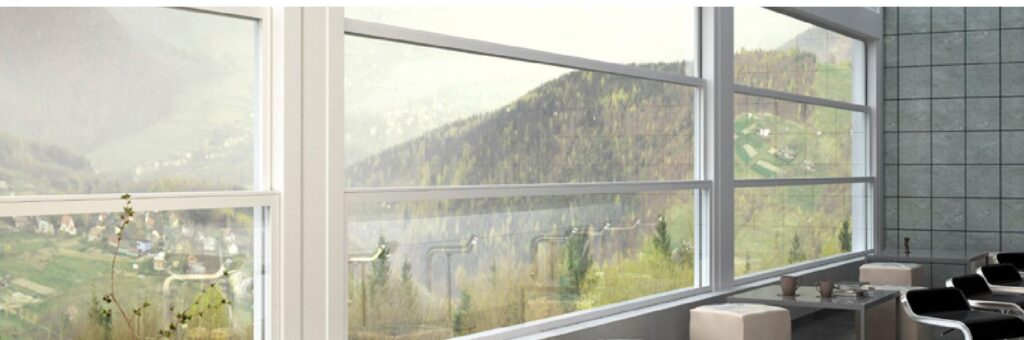

GUILLOTINE WINDOWS
Retractable

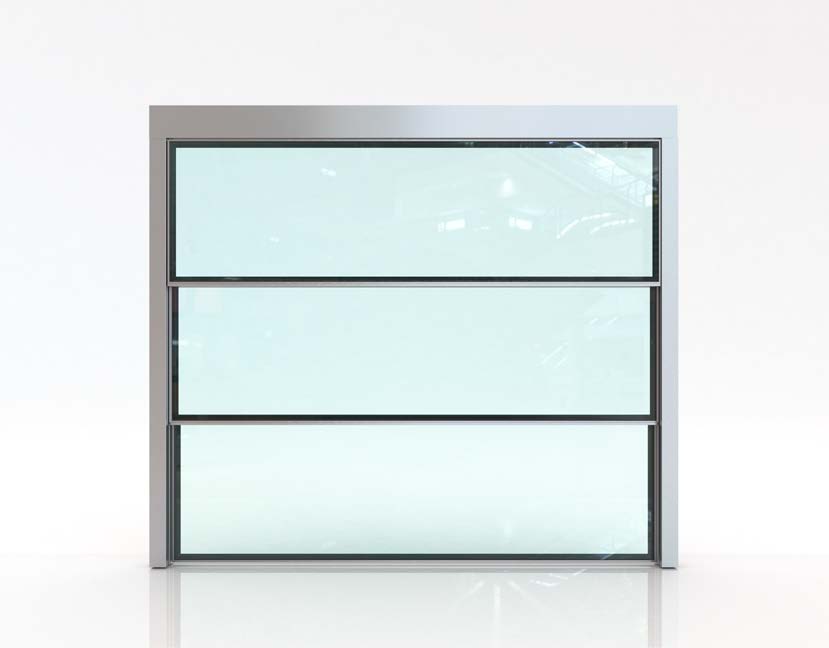

RW100T Retractable System
The Ultimate Thermal Break , Acoustic and Structural Glazed
In spaces where the need for thermal insulation and sound insulation is relatively high and specifically for large building openings with structural glazing and thermally broken aluminum profiles.

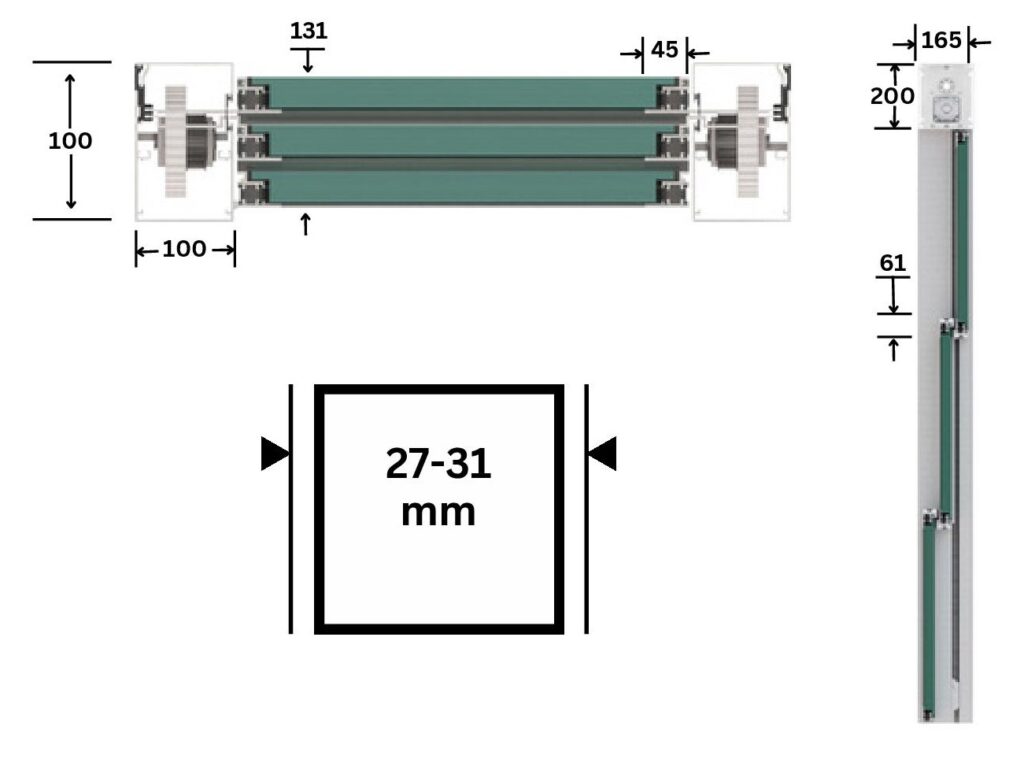

Maximum Width:
4800mm when th eposition of the fixed is at the bottom.
Maximum Height:
2 x 160 kg
Maximum Pane Weight:
24mm (PA 6.6, 25%GF)
Motion:
Belts
Motor:
Tubular
Insulation:
EPDM Gaskets
Resistance To Windload:
Class B1, EN 12210: 2016-03
Water Tightness:
Class 5A, EN 12208:2003
Air Permeability:
Class 3, EN 12207:2016-12
