GLASS BALUSTRADE SYSTEMS

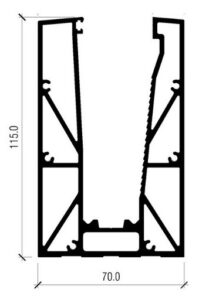

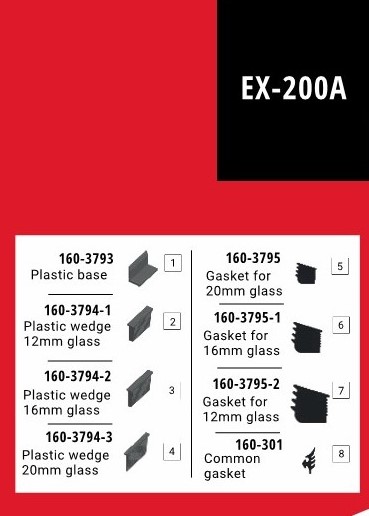

EX 200A

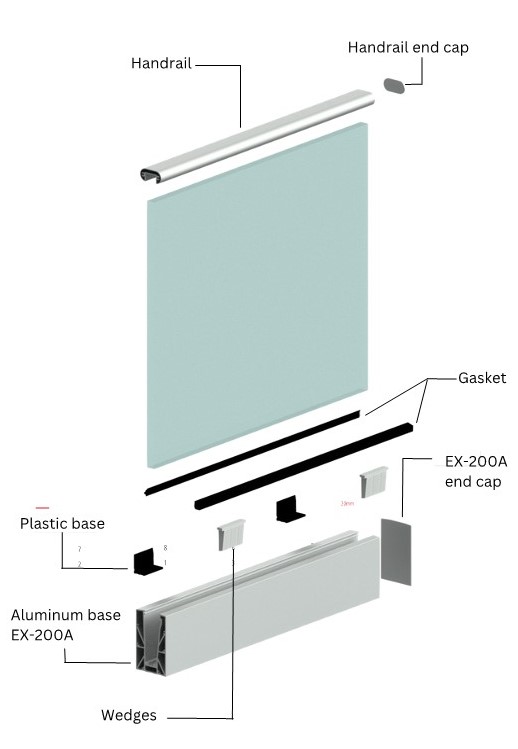

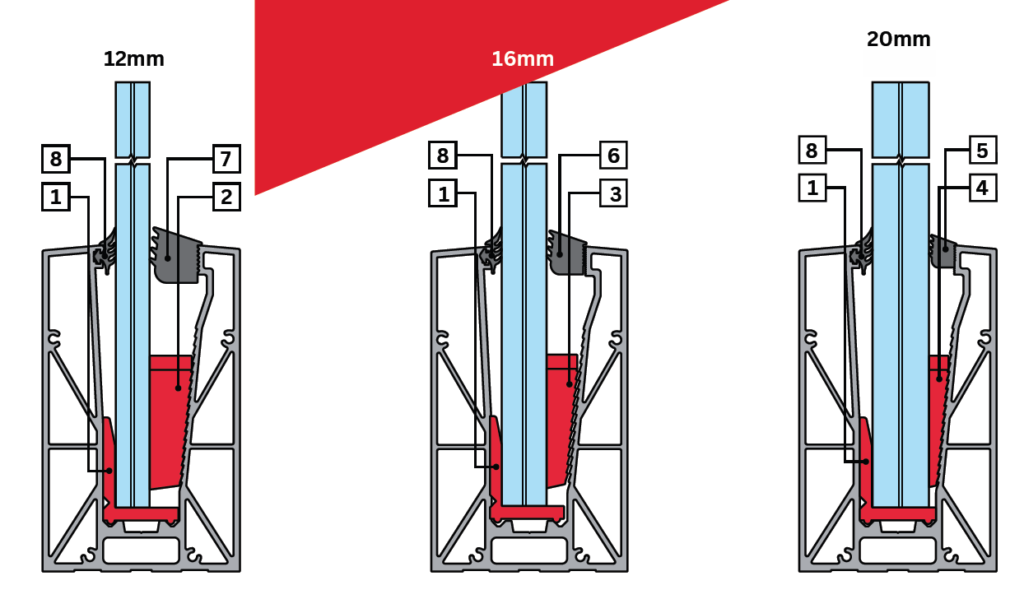

The new EX-200A glass floor support base is made entirely of aluminum, and it is suitable for constructing a glass railing on a finished floor or parapet. It consists of a one-piece profile for better support and perfect system alignment. It is certified and distinguished for easy and fast installation. The system accepts vertical glass 12mm, 16mm, 20mm thick, and up to 1100mm high. It is ideal for creating outdoor and indoor partitions, such as balconies, stairs, etc.
EX 200A – Weight 4,453 Kg/mtr
ADVANTAGES
Modern design with an endless visual field of freedom offers the ultimate view. Quick and easy installation due to the unique profile. Easy glass replacement without damage to the system. Ability to choose RAL colors, anodizing, Stainless Steel imitation, and wood imitation.
SB SERIES

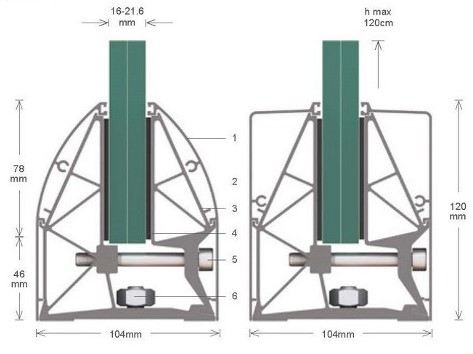

SB 1210
DIN 18008-4
Glass pane thickness:
16-21.6mm
Mount lengths:
120cm
Glass pane max. end height:
150 – 400 mm
1.
mount cap
2.
main body
3.
clamp
4.
rubber gasket
5.
Socket Head screw M8 x 70 mm
6.
mechanical anchors M10 – 12
SB 1412
DIN 18008-4
Glass pane thickness:
16-21.6mm
Mount lengths:
150 – 400 mm
Glass pane max. end height:
130cm
1.
mount cap
2.
main body
3.
clamp
4.
rubber gasket
5.
Socket Head screw M10 x 70 mm
6.
mechanical anchors M12
U BASE SERIES
DIN 18008-4

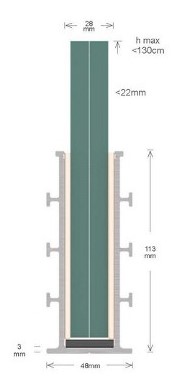

TYPE A
Structural molding chamber for concrete substrates, suitable for creating glass railings without any metal, panes up to 22mm thick, laminated or tempered laminated.

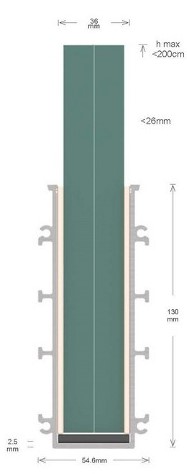

TYPE B
Structural molding chamber for concrete substrates, suitable for creating glass railings without any metal, panes up to 26mm thick, laminated or tempered laminated.
TYPE A
TYPE B
