EXALCO OPENING SYSTEMS
Opening Systems

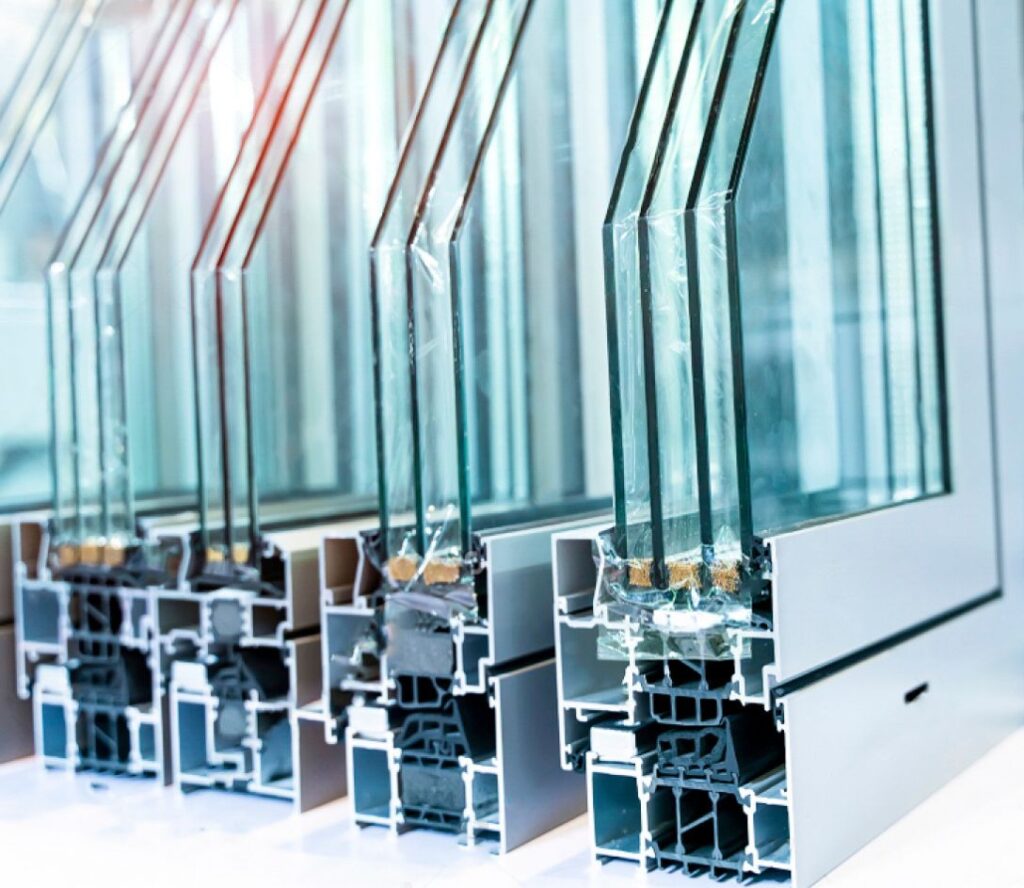

Thermal Break Systems
Opening
Sliding
Curtain Walls
Aluminum Alloy : EN AW 6060 T6 EN 15088:2005
Anodising: According to the European standard Qualanod
Gaskets: EPDM / EPDM Foam
Powder coating: According to the European standard Qualicoat
Tolerance: EN 12020-2
ALBIO 109
Exalco Albio 109 is based on the latest window technology and the highest building standards.
The System is specially designed to offer absolute protection against cold heat and sound insulation. With a beautiful finish.
Exalco Albio 109 includes two models with different profiles, oval and classic, offering an
excellent aesthetic result.
Doors
Windows
Shutters
Shop fronts
Fixed
Tilt & Turn
Multilock
Air Permeability:
Single sash window 1.01m Χ 2.26m: Class Ε1050
(EN 1027:2000 / EN 12208:2000)
Single sash window 1.01m Χ 2.26m: Class C4 (EN
12211:2000 / EN 12210:2000)
Single sash window 1.01m Χ 2.26m: Class 4 (EN
1026:2000 / EN 12207:2000)
Double sash window 1.40m X 2.20m: Class 4 (EN
1026:2000 / EN 12207:2000)
Chamber:
European, compatible with all the mechanisms
Frame dimensions:
Width 72.7-100mm, height 53.1-70 mm
Glazing Thickness:
22-50mm
Resistance to wind load:
Double sash window 1.40m X 2.20m: Class C5 (EN
12211:2000 / EN 12210:2000)
Sash dimensions:
Width 75.7mm, height 74.3-96.1mm
Thermal transmittance coefficient:
2.2 – 2.8 W/(m2K) (EN 10077-2:2003-10)
Thermal- Break:
20mm, 24mm (PA 6.6, 25%GF)
Water Tightness:
Double sash window 1.40m X 2.20m: Class 9A (EN
1027:2000 / EN 12208:2000)
Weighted sound reduction index:
45mm Double [(6+4)+24(4+4)],RW = 43dB (ΕΛΟΤ 307.3)
ALBIO 109C
Exalco Albio 109C has been designed, taking into account the latest technological advances in window systems design. It has achieved high
performance in terms of thermal insulation
thanks to its 24 mm wide polyamide profiles.
The excellent results of the air permeability tests and the possibility of glazing up to 44 mm thick provide high acoustic insulation. Using a multiperimeter locking mechanism in combination
with thermal insulation makes the Exalco Albio 109C an safe system. The system also includes two different profile models, oval and classic.
Doors
Windows
Shutters
Shop fronts
Fixed
Tilt & Turn
Multilock
Air Permeability:
Double sash window 1.40m X 2.20m: Class 4 (EN
1026:2000 / EN 12207:2000)
Single sash window 1.00m Χ 2.20m: Class 4 (EN
1026:2000 / EN 12207:2000)
Chamber:
Compatible with multiple locking mechanisms
Frame dimensions:
Width 72.7-100mm, height 53.1-70 mm
Glazing Thickness:
17-38mm
Resistance to wind load:
Double sash window 1.40m X 2.20m: Class C4 (EN 12211:2000 / EN 12210:2000)
Single sash window 1.00m Χ 2.20m: Class C4 (EN
12211:2000 / EN 12210:2000)
Width 75.7mm, height 82.1-96mm
Width 75.7mm, height 82.1-96mm
Thermal transmittance coefficient:
2.2 – 2.8 W/(m2K) (EN 10077-2:2003-10)
Thermal- Break:
24mm (PA 6.6, 25%GF)
Water Tightness:
Double sash window 1.40m X 2.20m: Class Ε1050
(EN 1027:2000 / EN 12208:2000
Single sash window 1.00m Χ 2.20m: Class 8A (EN
1027:2000 / EN 12208:2000)
Weighted sound reduction index:
43dB
ALBIO 109C Super Thermo
Exalco Albio 109C Super Thermo is EXALCO’s
flagship product in opening systems in terms of thermal insulation. The extremely low heat transfer coefficient has been achieved by using
wider polyamide profiles (34mm), the insertion of
new high insulation material, and the use of new gaskets.
Air permeability tests’ excellent results and the
possibility of using glazing up to 50 mm thick
guarantee high acoustic insulation.
Doors
Windows
Shutters
Shop fronts
Fixed
Tilt & Turn
Multilock
Resistance to wind load:
Double sash window 1.40m X 2.20m: Class C4 (EN
12211:2000 / EN 12210:2000)
Air Permeability:
Double sash window 1.40m X 2.20m: Class 4 (EN
1026:2000 / EN 12207:2000)
Single sash window 1.00m Χ 2.20m: Class 4 (EN
1026:2000 / EN 12207:2000)
Chamber:
Compatible with multiple locking mechanisms
Frame dimensions:
Width 82.7-100mm, height 53.1-70 mm
Glazing Thickness:
26-64mm
Sash dimensions:
Width 85.7mm, height 74.3-96.1mm
Thermal transmittance coefficient:
2.2 – 2.8 W/(m2K) (EN 10077-2:2003-10)
Thermal- Break:
34mm (PA 6.6, 25%GF)
Water Tightness:
Double sash window 1.40m X 2.20m: Class Ε1050 (EN
1027:2000 / EN 12208:2000
Weighted sound reduction index:
40 dB
The system includes a high-security mechanism known as a multi-perimeter locking mechanism.Air permeability tests’ excellent results and the possibility of using glazing up to 50 mm thick guarantee high acoustic insulation. The system includes a high-security mechanism known as a multi-perimeter locking mechanism.
ALBIO 125C
Exalco Albio 125C is distinguished by the timelessness of its design and its excellent performance in the field of thermal and acoustic insulation. Its aesthetics satisfy all needs, taking into account the advantage of the combination of the straight and curved door.
Doors
Windows
Shutters
Shop fronts
Fixed
Tilt & Turn
Multilock
Air Permeability:
Double sash window 1.40m X 2.20m: Class 4 (EN
1026:2000 / EN 12207:2000)
Chamber:
Compatible with multiple locking mechanisms
Frame dimensions:
Width 57.7-180mm, height 50.9mm
Glazing Thickness:
5-28mm
Resistance to wind load:
Double sash window 1.40m X 2.20m: Class C3 (EN
12211:2000 / EN 12210:2000)
Sash dimensions:
Width 66.2mm, height 78-102.2mm
Thermal transmittance coefficient:
2.5 – 5.1 W/(m2K) (EN 10077-2:2003-10)
Thermal- Break:
22 mm, 24 mm, 25mm (PA 6.6, 25%GF
Water Tightness:
Double sash window 1.40m X 2.20m: Class Ε900 (EN
1027:2000 / EN 12208:2000)
Weighted sound reduction index:
40dB

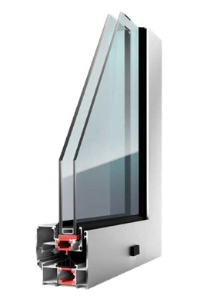

ALBIO 127C
Exalco Albio127C is a new opening, tilt and turn system with special polyamides, which allows the creation of exquisite frames without visible sashes. The system design was such that the outer frame completely covered the chassis
frame. Albio 127C stands out for the elegance of the
construction. It reduces the visible aluminum and allows a greater glazed surface, which,
combined with the absence of visible joints, directly affects the aesthetics to both interior
and exterior applications.
Doors
Windows
Shutters
Shop fronts
Fixed
Tilt & Turn
Multilock
Air Permeability:
Specimen dimensions: 1.40m X 1.40m: Class 4 (EN
12207:1999-11)
Specimen dimensions: 1.50m X 1.50m: Class 4 (EN
12207:1999-11)
Chamber:
Compatible with multiple locking mechanisms
Frame dimensions:
Width 66,5mm, height 72mm
Glazing Thickness:
25mm
Resistance to wind load:
Specimen dimensions: 1.40m X 1.40m: Class C4/B4
(EN 12210:1999-11/AC:2002-08)
Specimen dimensions: 1.50m X 1.50m: Class C4/B4
(EN 12210:1999-11/AC:2002-08)
Sash dimensions:
Width 67,3mm, height 53,3mm
Thermal transmittance coefficient:
2.42 – 3.01 W/(m2K) (EN 10077-2:2012)
Thermal- Break:
24mm (PA 6.6, 25%GF
Water Tightness:
Specimen dimensions: 1.40m X 1.40m: Class 8Α (EN
12208:1999-11)
Specimen dimensions: 1.50m X 1.50m: Class Ε1500
(EN 12208:1999-11)
Weighted sound reduction index:
37dB
The system also includes profiles with larger polyamides that guarantee more significant
energy savings, considerably reducing heating costs.
The system allows the installation of multiple perimeter locking mechanisms, providing the maximum possible security.

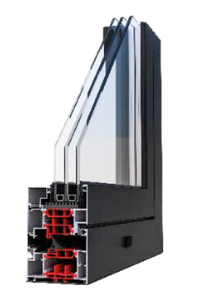

ALBIO 129C Advanced
Exalco ALBIO 129C Advanced thermal opening system with multi-locking perimeter.
Albio 129C Advanced is the only sash system with a width of 78.3 mm that has high thermal insulation properties with Uf = 1.48 Ug = 1.0 W /
(m2K) and Uw = 1.4 Ug = 1.0 W / (m2K), thanks to the use of special polyamides.
Doors
Windows
Shutters
Shop fronts
Fixed
Tilt & Turn
Multilock
Air Permeability:
Class 4
Chamber:
Compatible with multiple locking mechanisms
Frame dimensions:
Width 64mm height 55-185mm
Glazing Thickness:
16-46mm
Resistance to wind load:
Class C5
Sash dimensions:
Width 78.3mm height 82-105mm
Thermal transmittance coefficient:
Thermal- Break:
Water Tightness:
Class E1800
Weighted sound reduction index:
49dB (ΕΛΟΤ 307.3)
A special waterproof component has been used
that replaces the central seal and provides better thermal insulation capacity.
The system’s design with minimal straight lines
provides a minimalist appearance and
enhanced aesthetics. Also, it is possible to use a coplanar frame not only outside but also inside.
